Deye SUN-6K-SG03LP1-EU 6kw single phase 2 mppt hybrid solar inverter
- Brand: Electical Products
- Product Code: Product 1
- Availability: In Stock
-
Rs.635,000.00
- Ex Tax: Rs.635,000.00
Deye Single Phase Hybrid Inverter
SUN-8K-SG01LP1-EU | 8KW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
Deye hybrid solar inverter SUN-5K/6K/7K/8K-SG01LP1-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
|
Model |
SUN-3.6K-SG03LP1-EU |
SUN-5K-SG03LP1-EU |
SUN-6K-SG03LP1-EU |
|
Battery Input Data |
|||
|
Battery Type |
Lead-acid or Lithium-ion |
||
|
Battery Voltage Range (V) |
40~60V |
||
|
Max. Charging Current (A) |
90A |
120A |
135A |
|
Max. Discharging Current (A) |
90A |
120A |
135A |
|
Charging Curve |
3 Stages / Equalization |
||
|
External Temperature Sensor |
Optional |
||
|
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
||
|
PV String Input Data |
|||
|
Max. DC Input Power (W) |
4680W |
6500W |
7800W |
|
PV Input Voltage (V) |
370V (125V~500V) |
||
|
MPPT Range (V) |
150~425V |
||
|
Full Load DC Voltage Range |
300~425V |
||
|
Start-up Voltage (V) |
125V |
||
|
PV Input Current (A) |
13A+13A |
||
|
Max. PV ISC (A) |
17A+17A |
||
|
No.of MPPT Trackers |
2 |
||
|
No.of Strings Per MPPT Tracker |
1+1 |
||
|
AC Output Data |
|||
|
Rated AC Output and UPS Power (W) |
3600W |
5000W |
6000W |
|
Max. AC Output Power (W) |
3690W |
5500W |
6600W |
|
Peak Power (off grid) |
2 times of rated power, 10 S |
||
|
AC Output Rated Current (A) |
16.4A |
22.7A |
27.3A |
|
Max. AC Current (A) |
18A |
25A |
30A |
|
Max. Continuous AC Passthrough (A) |
35A |
40A |
|
|
Power Factor |
0.8 leading to 0.8 lagging |
||
|
Output Frequency and Voltage |
50/60Hz; 220/230 / 240Vac (single phase) |
||
|
Grid Type |
Single Phase |
||
|
Current Harmonic Distortion |
THD<3% (Linear load<1.5%) |
||
|
Efficiency |
|||
|
Max. Efficiency |
97.60% |
||
|
Euro Efficiency |
96.50% |
||
|
MPPT Efficiency |
99.90% |
||
|
Protection |
|||
|
PV Input Lightning Protection |
Integrated |
||
|
Anti-islanding Protection |
Integrated |
||
|
PV String Input Reverse Polarity Protection |
Integrated |
||
|
Insulation Resistor Detection |
Integrated |
||
|
Residual Current Monitoring Unit |
Integrated |
||
|
Output Over Current Protection |
Integrated |
||
|
Output Shorted Protection |
Integrated |
||
|
Output Over Voltage Protection |
Integrated |
||
|
Surge protection |
DC Type II / AC Type Ⅲ |
||
|
Certifications and Standards |
|||
|
Grid Regulation |
VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3: 2019-05 |
||
|
Safety Regulation |
IEC62109-1, IEC62109-2 |
||
|
EMC |
EN61000-6-1, EN61000-6-3 |
||
|
General Data |
|||
|
Operating Temperature Range (℃) |
-25~60℃, >45℃ Derating |
||
|
Cooling |
Smart cooling |
||
|
Noise (dB) |
<30 dB |
||
|
Communication with BMS |
RS485; CAN |
||
|
Weight (kg) |
20.5 |
||
|
Size (mm) |
330W×580H×232D |
||
|
Protection Degree |
IP65 |
||
|
Installation Style |
Wall-mounted |
||
|
Warranty |
5 years |
||

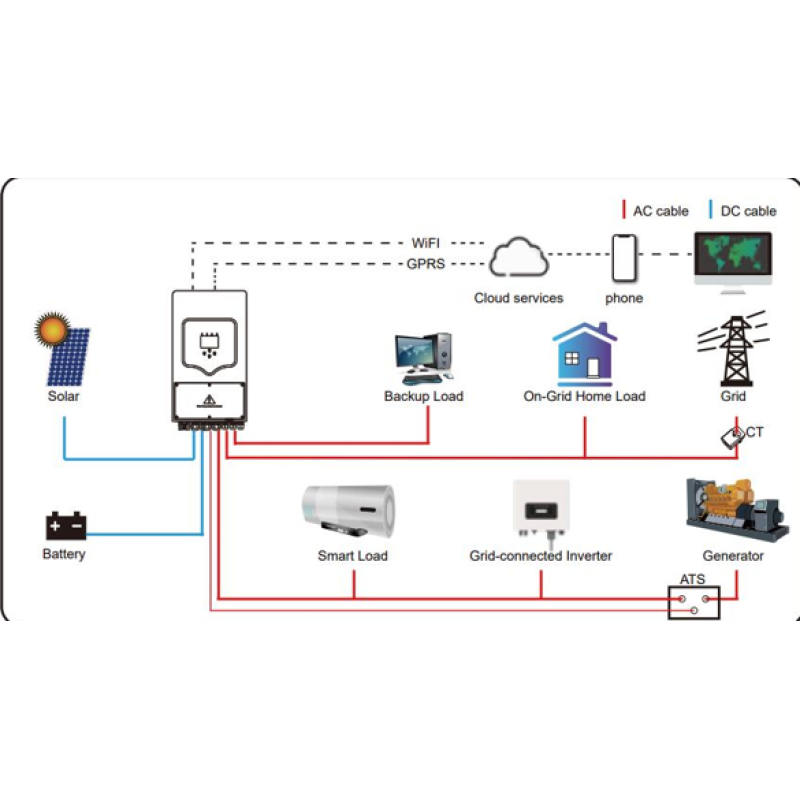

System Architechture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
