IP65 More Choices Deye 3 Phases SUN- 10K-G05-EU On Grid Solar Inverter 10KW
SUN-10-G05 | 10 KW | Three Phase | 2 MPPT
Higher yields / Safe & Reliable / Smart / User-friendly
This series inverter is specially designed for three-phase PV systems, covering a wide power range of 4kW, 5kW, 6kW, 7kW, 8kW,
10kW, 12kW. With compactness design, it is easy to install and operate. It supports wide AC output voltage to ensure longer
working hour.
* Zero export application, VSG application
* String intelligent monitoring (optional)
* Wide output voltage range
* Anti-PID function (Optional)
Specification
|
Model |
SUN-4K-G05 |
SUN-5K-G05 |
SUN-6K-G05 |
SUN-7K-G05 |
SUN-8K-G05 |
SUN-10K-G05 |
SUN-12K-G05 |
|
Input Side |
|||||||
|
Max. DC Input Power(kW) |
5.2 |
6.5 |
7.8 |
9.1 |
10.4 |
13 |
15.6 |
|
Max. DC Input Voltage (V) |
1000 |
||||||
|
Start-up DC Input Voltage(V) |
140 |
250 |
|||||
|
MPPT Operating Range(V) |
120~850 |
200~850 |
|||||
|
Max. DC Input Current(A) |
13+13 |
||||||
|
Max. Short Circuit Current (A) |
19.5+19.5 |
||||||
|
Number of MPPT/Strings per MPPT |
2/1 |
||||||
|
Output Side |
|||||||
|
Rated Output Power(kW) |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
|
Max. Active Power(kW) |
4.4 |
5.5 |
6.6 |
7.7 |
8.8 |
11 |
13.2 |
|
Nominal Output Voltage / Range (V) |
3L/N/PE 380V/0.85Un-1.1Un, 400V/0.85Un-1.1Un |
||||||
|
Rated Grid Frequency(Hz) |
50 / 60 (Optional) |
||||||
|
Operating Phase |
Three phase |
||||||
|
Rated AC Grid Output Current(A) |
5.8 |
7.2 |
8.7 |
10.1 |
11.6 |
14.5 |
17.4 |
|
Max. AC Output Current(A) |
6.4 |
8 |
9.6 |
11.1 |
12.8 |
15.9 |
19.1 |
|
Output Power Factor |
0.8 leading to 0.8 lagging |
||||||
|
Grid Current THD |
<3% |
||||||
|
DC Injection Current(mA) |
<0.5% |
||||||
|
Grid Frequency Range |
47~52 or 57~62 (Optional) |
||||||
|
Efficiency |
|||||||
|
Max.Efficiency |
98.30% |
||||||
|
Euro Efficiency |
97.50% |
||||||
|
MPPT Efficiency |
>99% |
||||||
|
Protection |
|||||||
|
DC Reverse-Polarity Protection |
Yes |
||||||
|
AC Short Circuit Protection |
Yes |
||||||
|
AC Output Overcurrent Protection |
Yes |
||||||
|
Output Overvoltage Protection |
Yes |
||||||
|
Insulation Resistance Protection |
Yes |
||||||
|
Ground Fault Monitoring |
Yes |
||||||
|
Islanding Protection |
Yes |
||||||
|
Temperature Protection |
Yes |
||||||
|
Integrated DC Switch |
Yes |
||||||
|
Remote software upload |
Yes |
||||||
|
Remote change of operating parameters |
Yes |
||||||
|
Surge protection |
DC Type II / AC Type II |
||||||
|
General Data |
|||||||
|
Size(mm) |
330W×457H×185D |
330W×457H×205D |
|||||
|
Weight(kg) |
10 |
11 |
|||||
|
Topology |
Transformerless |
||||||
|
Internal Consumption |
<1W (Night) |
||||||
|
Running Temperature |
-25~65℃,>45℃ derating |
||||||
|
Ingress Protection |
IP65 |
||||||
|
Noise Emission(Typical) |
<30dB |
||||||
|
Cooling Concept |
Natural cooling |
||||||
|
Max. Operating Altitude Without Derating |
2000m |
||||||
|
Designed Lifetime |
>20 years |
||||||
|
Grid Connection Standard |
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
||||||
|
Operating Surroundings Humidity |
0-100% |
||||||
|
Safety EMC/Standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
||||||
|
Features |
|||||||
|
DC Connection |
MC-4 mateable |
||||||
|
AC Connection |
IP65 rated plug |
||||||
|
Display |
LCD1602 |
||||||
|
Interface |

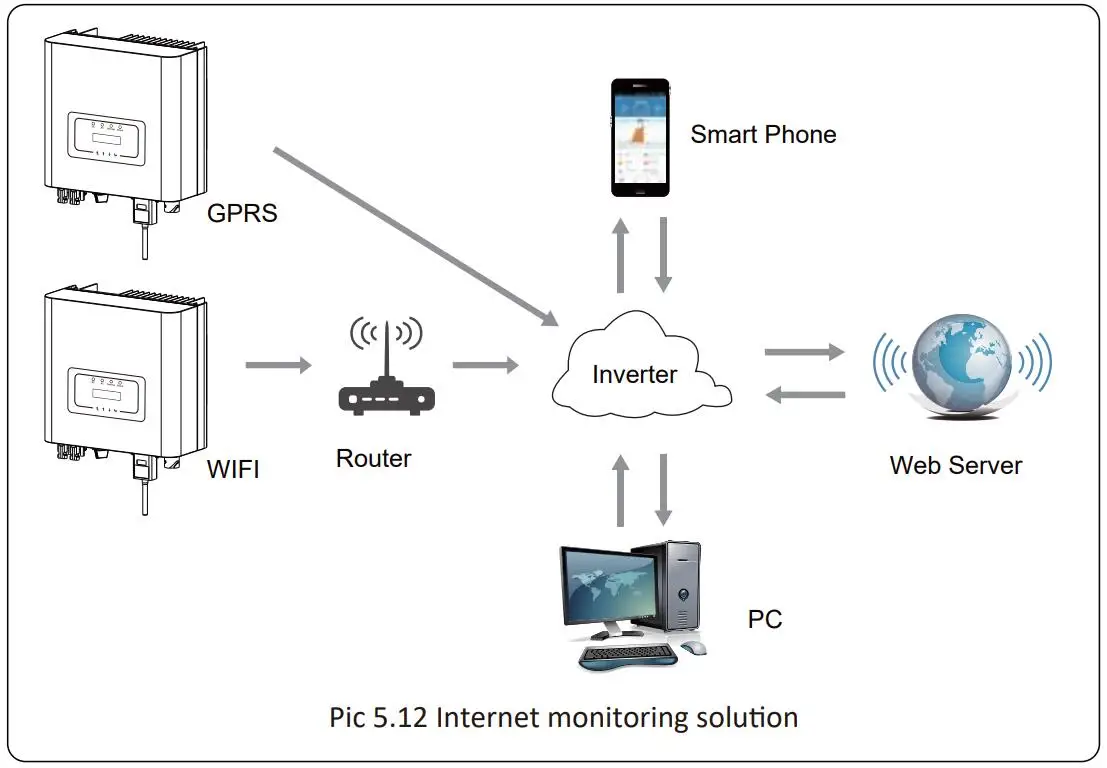

RS485/RS232/Wifi/LAN |
||||||
Products Description
1. MPP tracker, Max. efficiency up to 97.5% 2. Zero export application,VSG application 3. String intelligent monitoring (optional) 4. Wide output voltage range 5. Anti-PID function(Optional)

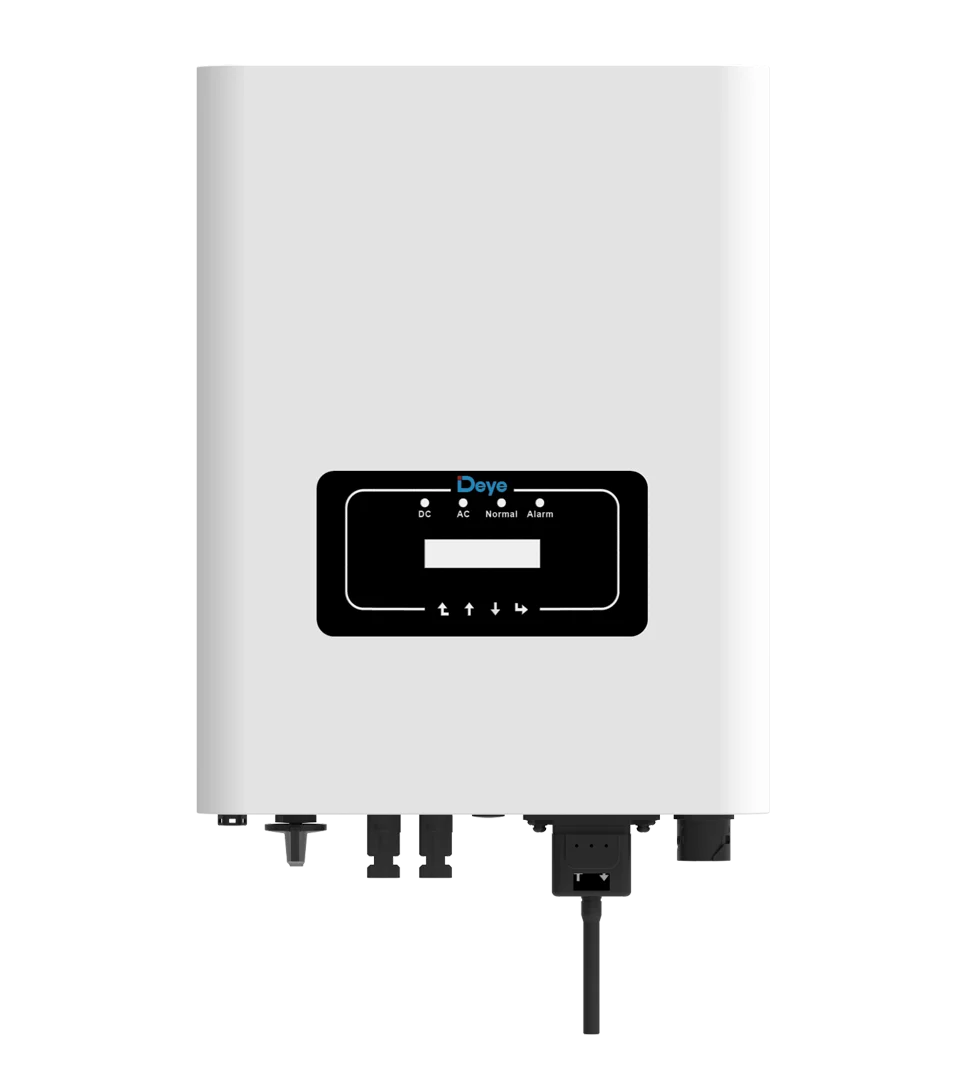

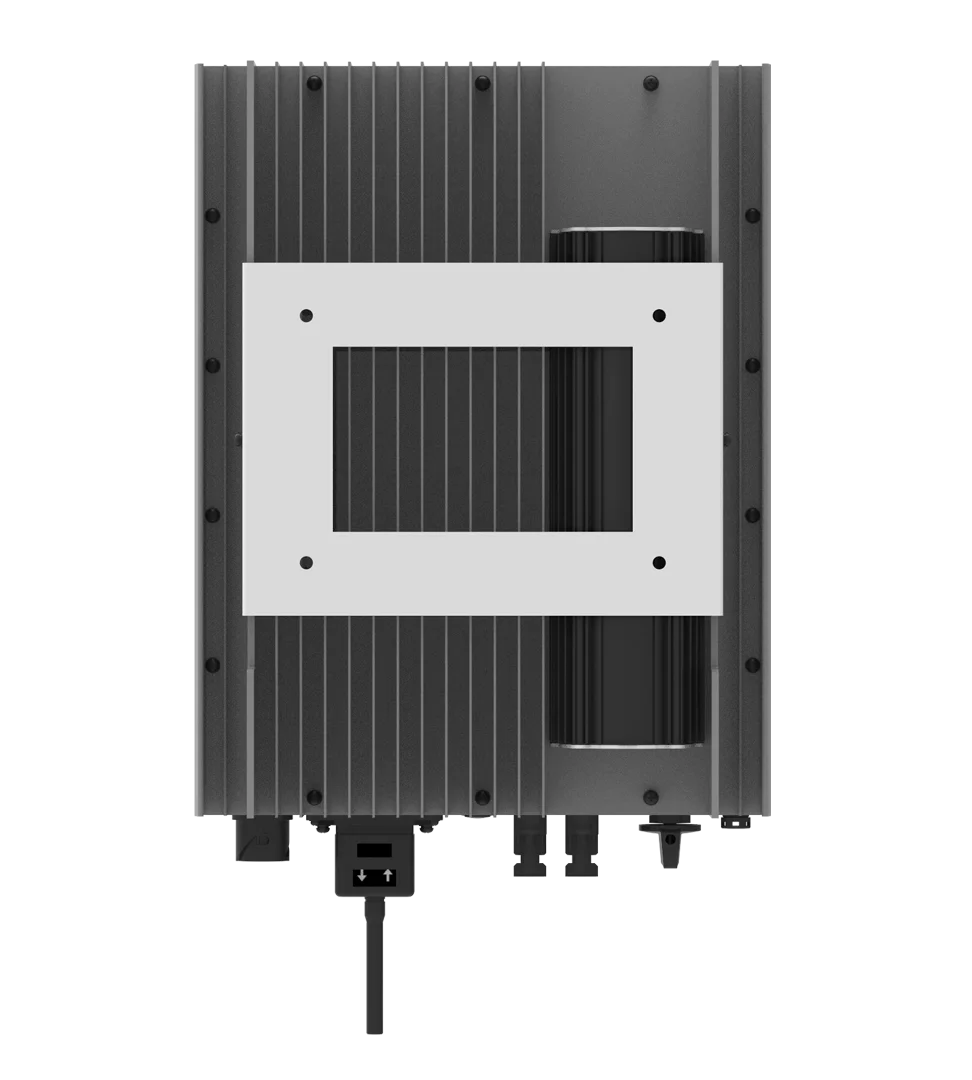

Details Images

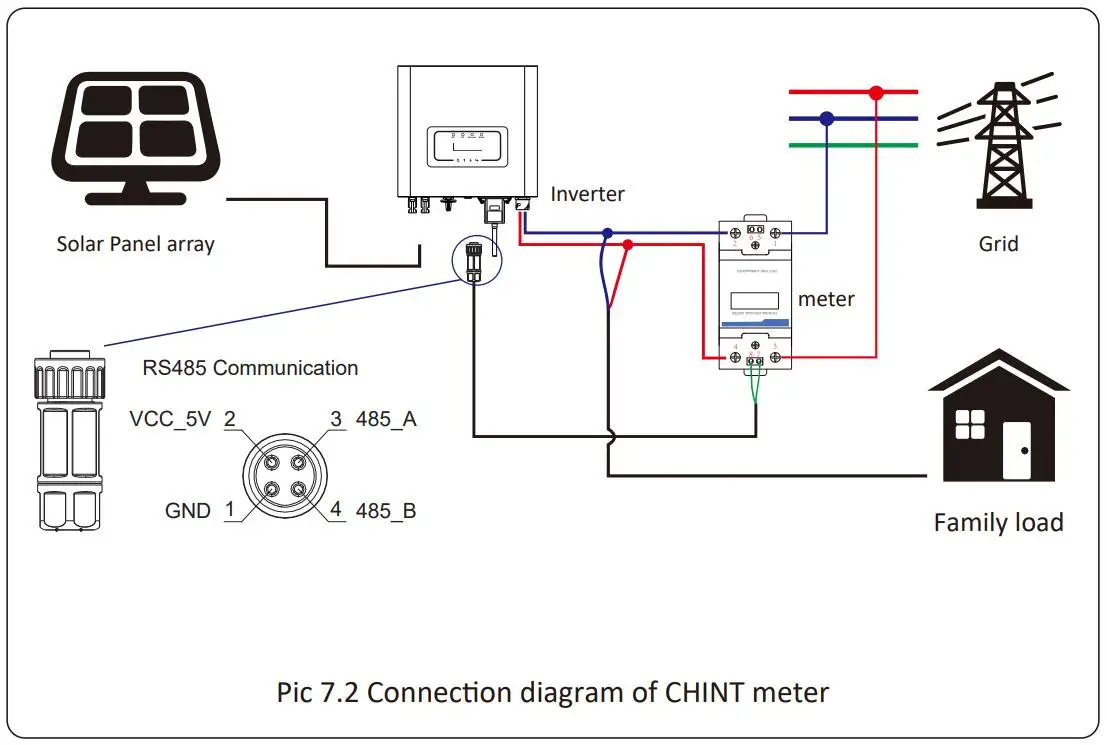

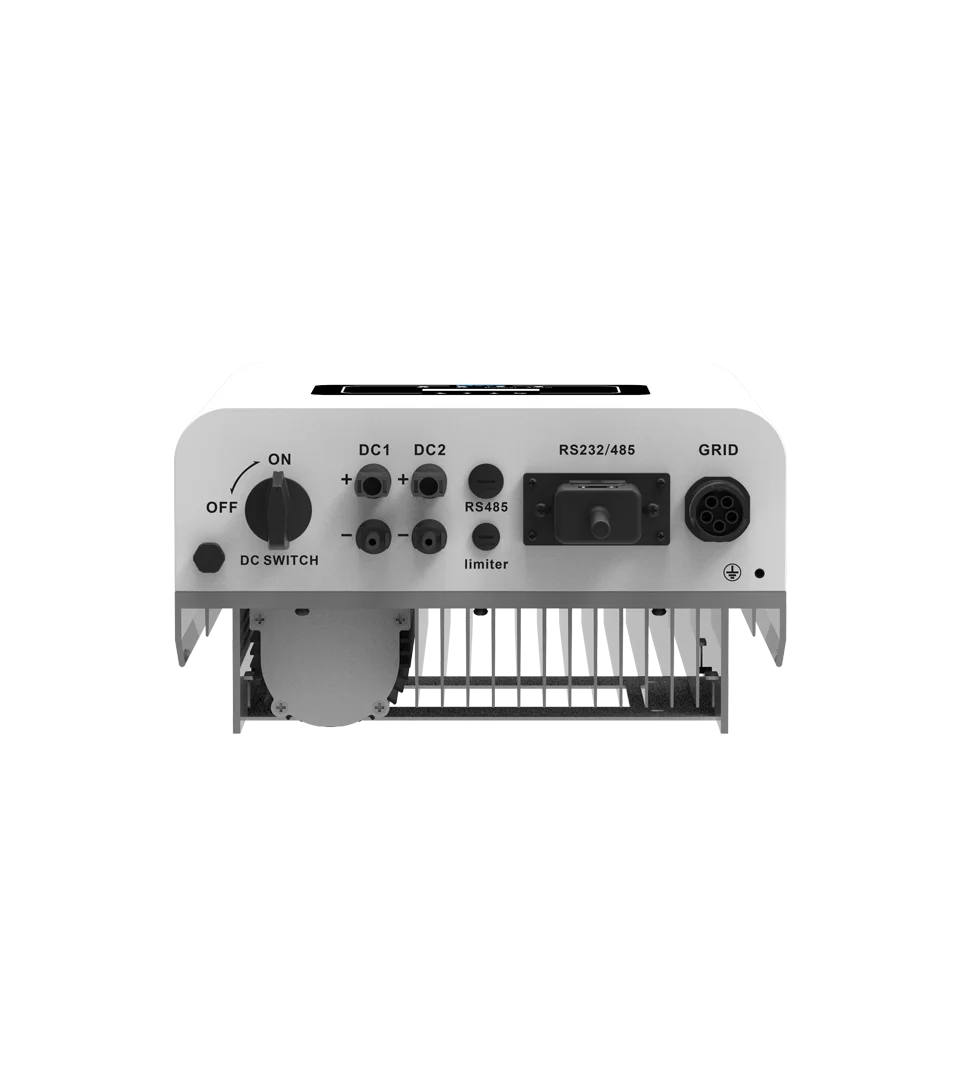

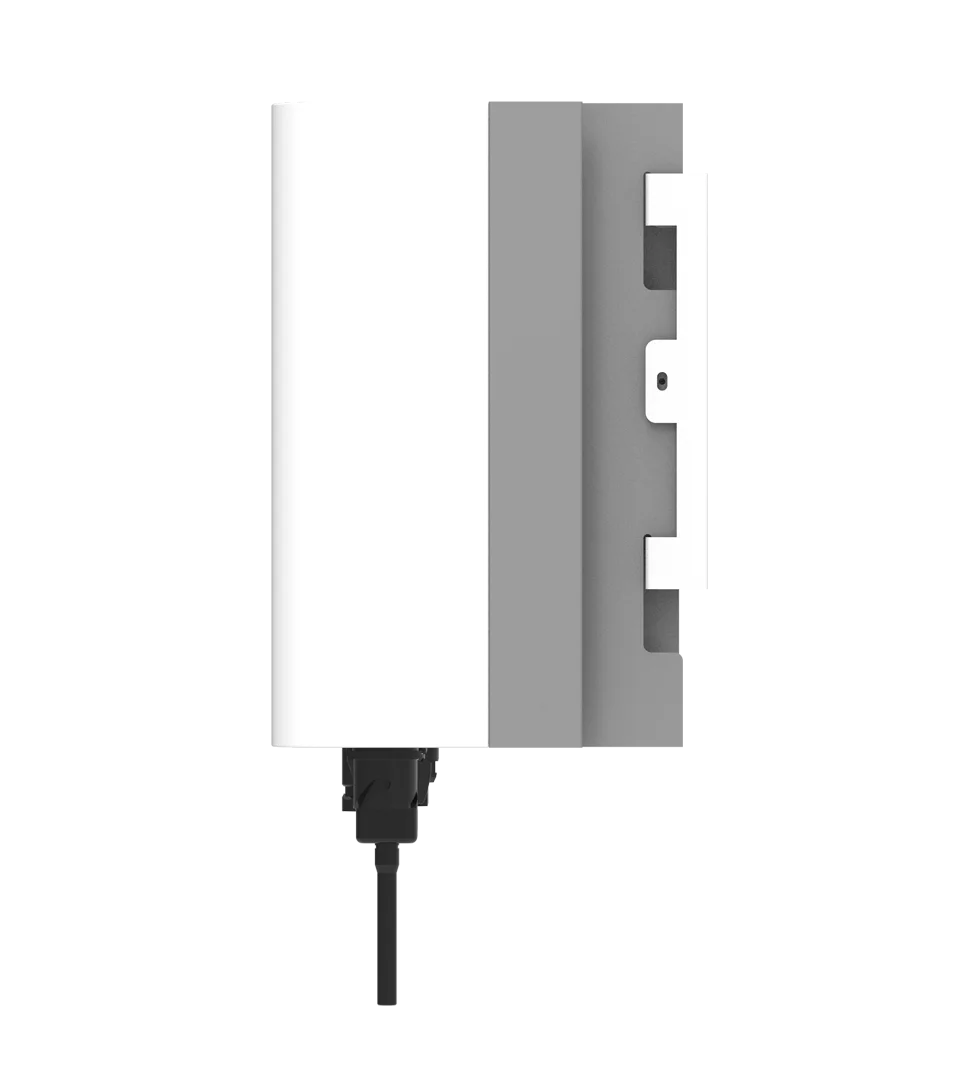

Wiring order & Accessories
